6~25kg Level Drone
ServoMax12
Long Endurance Capabilities for
Cargo Drone & Unmanned System
Characteristics
- Advanced EMA with high-performance DSP
- High-power motor and fine-tuned gear assembly
- Non-contact sensor for wear-free feedback
- Compliant with defense-level environmental standards
- Fully meeting IP67 requirements
Specifications
-
Processor
High Performance DSP
-
Main Components
High Reliability BLDC Motor Contactless Position Sensor
-
Max. Operating Torque
5.0 kgf·cm @ 25°C
-
Rated Speed
215°/s @ 7.4 VDC
-
No Load Speed
430°/s @ 7.4 VDC
-
Operating Voltage
4.8 ~ 8.4VDC
-
Rated Current
0.7A
-
Control Accuracy
≤ 1° (Including Backlash)
-
Bandwidth
16Hz @ 4° Sine Wave
-
Operating Temperature
-40°C ~ -71°C
-
Interface
CAN / PWM
-
Weight
(HYBRID) 38g / (CAN / PWM) 42g
-
Max. Travel Angle
(HYBRID / CAN) ±170° (Adjustable), ±60°(default) / (PWM) ±60° (Fixed)
-
Connector
(HYBRID) P2 for PWM, P3 for CAN / (CAN / PWM) N/A
-
Material Type
Stainless Steel Gear, Aluminium Case (With Anodized)

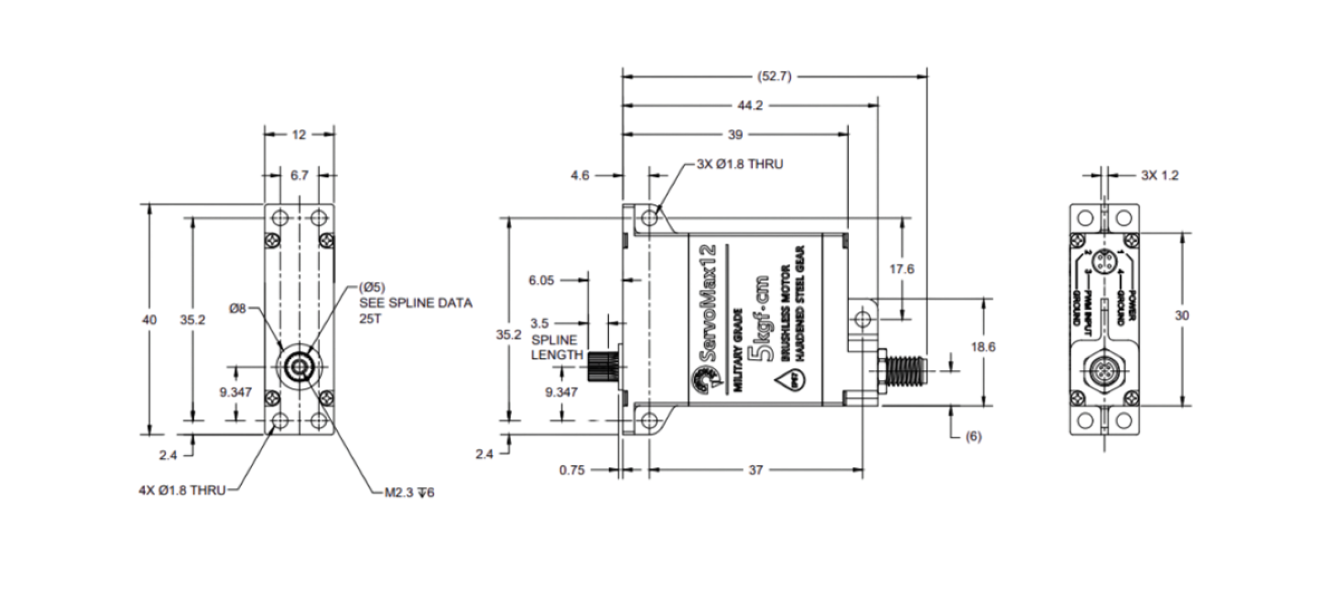

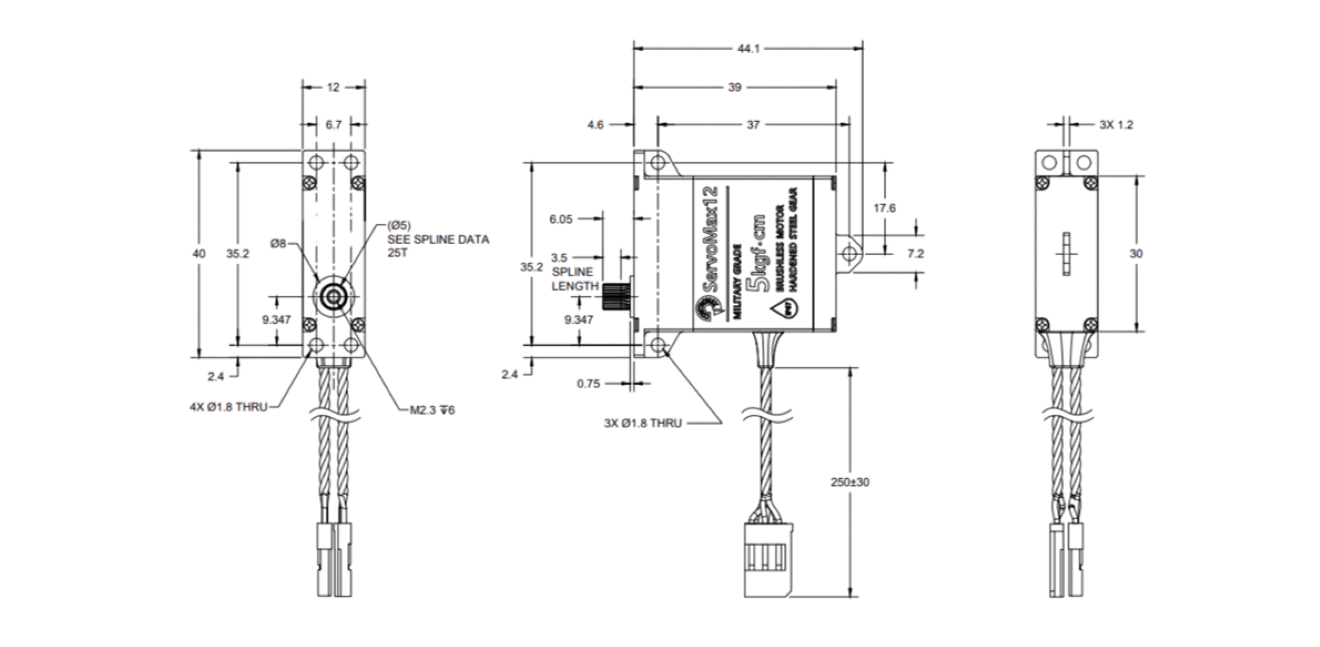

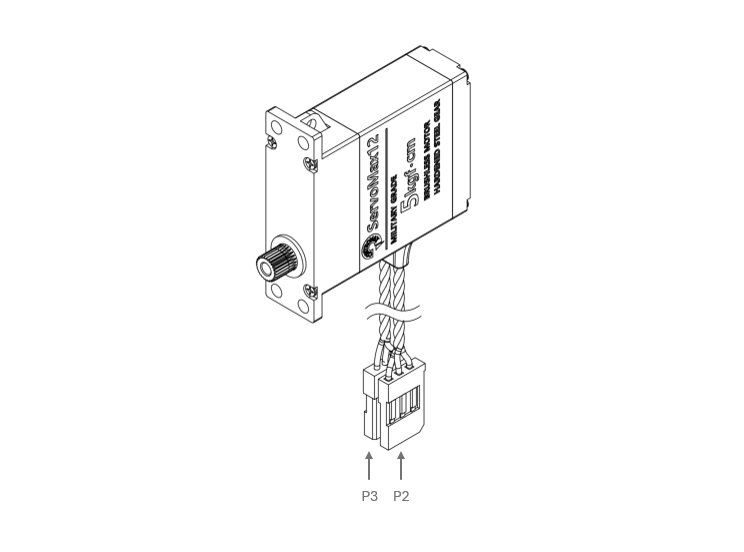

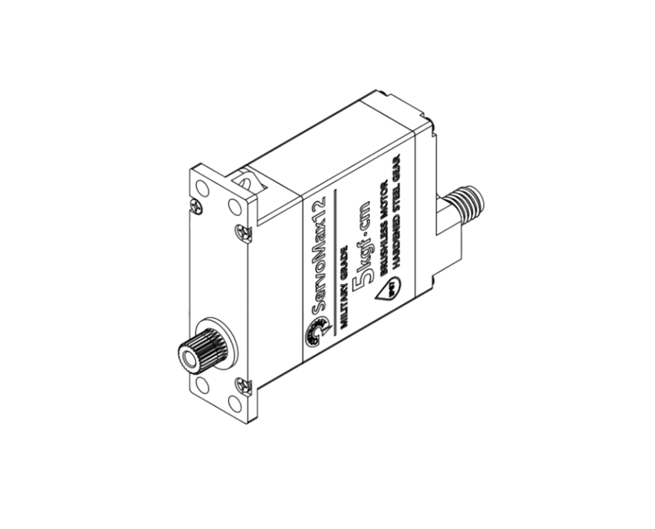

Electrical interface
P2 Connector (PWM)
| Pin | Signal | Remarks |
|---|---|---|
| 1 (Black) | GROUND | - |
| 2 (Red) | POWER | 4.8~8.4 VDC |
| 3 (Yellow) | PWM INPUT | TTL, 0.9~2.1ms/50~333Hz |
P3 Connector (CAN)
| Pin | Signal | Remarks |
|---|---|---|
| 1 (Yellow) | CAN_H | - |
| 2 (Green) | CAN_L | - |
| 3 (Black) | GROUND | - |
Electrical interface
Connector
| Pin | Signal | Remarks |
|---|---|---|
| 1 | POWER | 4.8~8.4 VDC |
| 2 | GROUND | - |
| 3 | CAN_H | - |
| 4 | CAN_L | - |
Electrical interface
Connector
| Pin | Signal | Remarks |
|---|---|---|
| 1 | POWER | 4.8~8.4VDC |
| 2 | GROUND | - |
| 3 | PWM INPUT | TTL, 0.9~2.1ms/50~333Hz |
| 4 | GROUND | - |

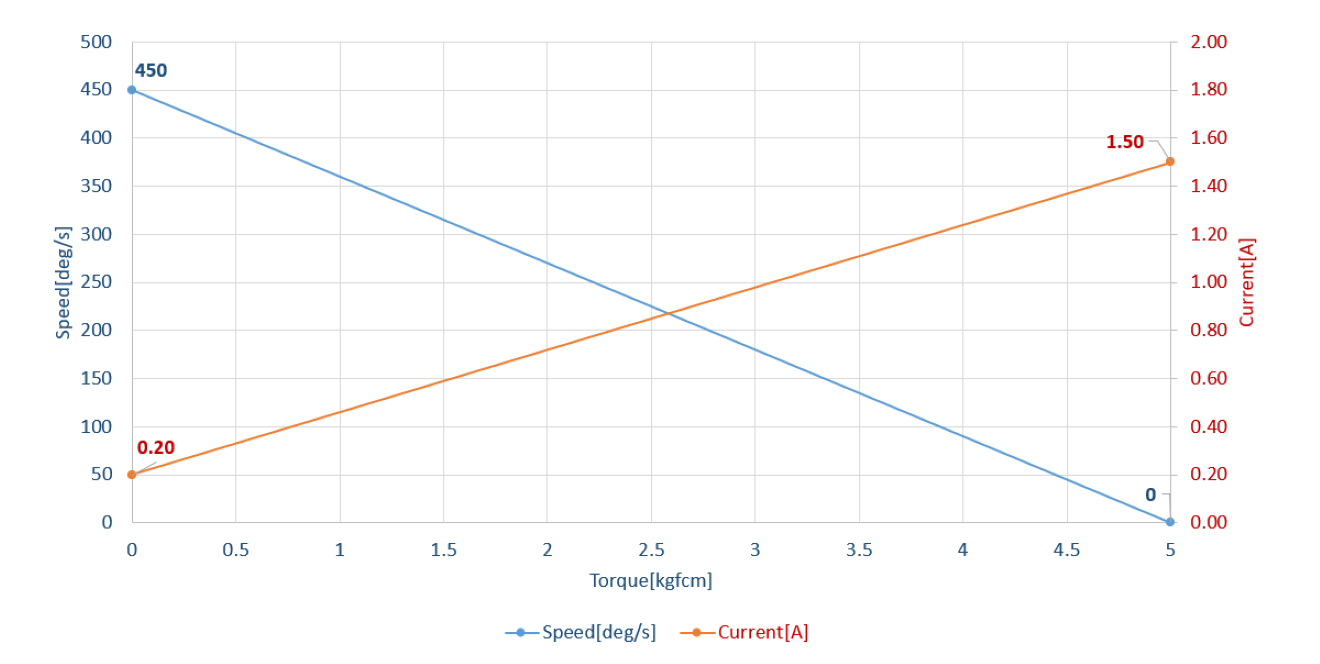

NTI Chart
CAN Databus
Interface
-
Revision: CAN2.0A, CAN2.0B
-
Baudrate: 1Mbps / 500k (Default) / 250k / 125k
-
Endianness: Big Endian
-
Termination Resistors: N/A
-
Command / Response Protocol: Support 1 Command Message, up to 2 Response Messages
-
User Configuration Parameter: Internal Memory Access available
-
*Contact us for more information on PWM interface.
-
*The HYBRID model supports both CAN & PWM interfaces.
