Electromechanical Actuator

ServoMax® Series

for 6~25kg Level Drone

6~25kg Level Drone

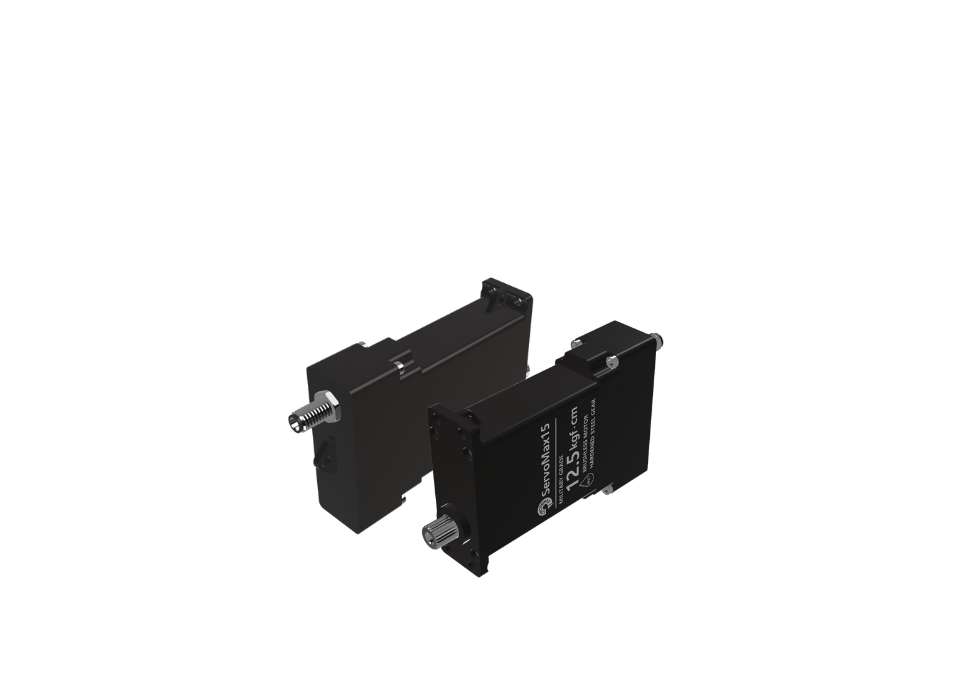

ServoMax15

Long Endurance Capabilities for
Cargo Drone & Unmanned System

Characteristics

Advanced EMA with high-performance DSP
High-power motor and fine-tuned gear assembly
Non-contact sensor for wear-free feedback
Built-in jitter suppression for precise motion
Compliant with defense-level environmental and EMC standards

Datasheet

ICD&Manual

Specifications

Processor

High Performance DSP
Motor

Permanent Magnet Synchronous
Position Sensor

Contactless
Databus

CAN / PWM / RS485
Rated Torque

≥ 7.2kgf·cm
Max. Operating Torque

≥ 11.0kgf·cm, Limited Time
Rated Speed

≥ 200°/s @ 7.4 VDC
No Load Speed

≥ 360°/s @ 7.4 VDC
Operating Voltage

6.0 ~ 8.4 VDC
Angular Backlash

≤ 0.3°
Position Accuracy

≤ 0.5°
Bandwidth

≥ 5 Hz @ 2° Sine Wave
Weight

≤ 75g
Gears

Stainless Steel
Housing

Aluminum, Anodized
Max. Travel Range

±170°
Connector

Aerospace Grade, Circular Connector
Operating Temperature

-40°C ~ 71°C
Environmental Qualifications

MIL-STD-810x, Selected Items
Electromagnetic Compliance

-

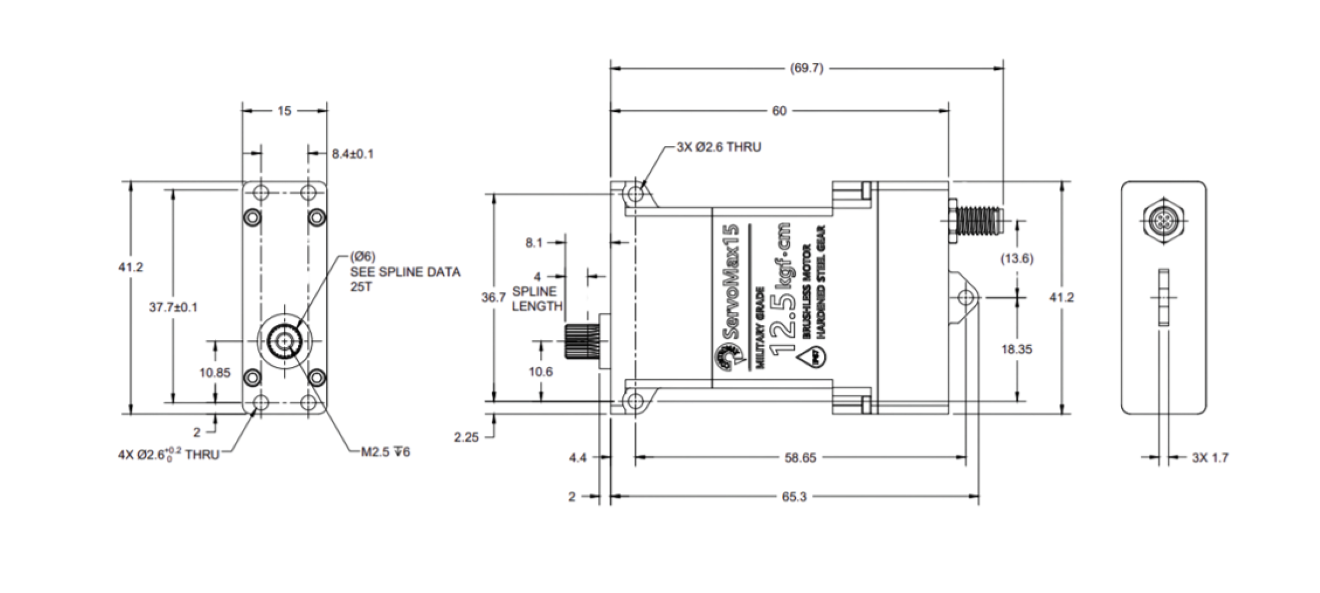

Dimension

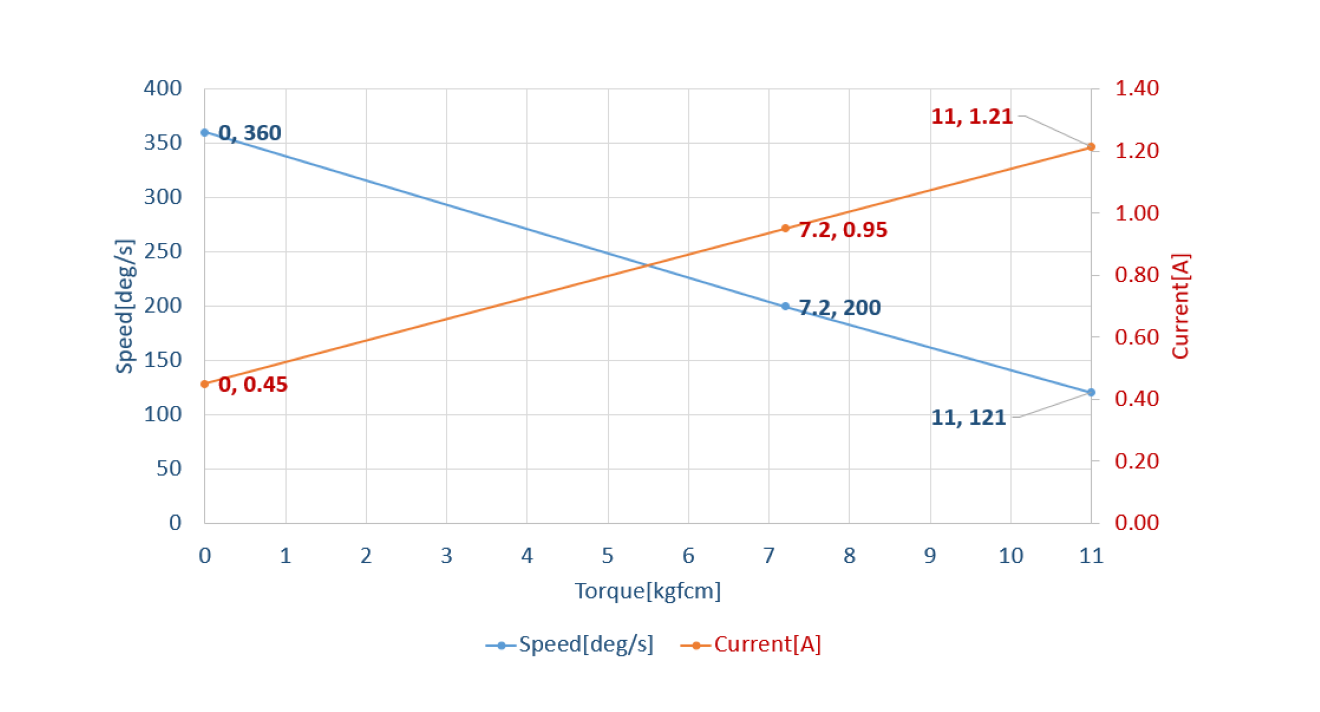

NTI Chart
